Metal Equipment Nameplates
Etched Metal Nameplates for Industrial Equipment Signage
Etched metal nameplates are made for industrial equipment that needs permanent, legible signage instead of a surface-only printed label. Chemical etching creates recessed text, logos and data fields that can be paint-filled or left with a contrasting metal finish for durable machine identification.
We manufacture chemical etched metal signage nameplates with stainless steel, aluminum or brass options, plus brushed finish, black fill, screen printing, laser marking, mounting holes and adhesive backing. The process is well suited to rating plates, warning labels, control panels and OEM equipment signage.
-
Chemical etching for recessed, long-life equipment markings
-
Good for rating plates, warning signs, machine data and control panels
-
Paint fill, brushed finish, printing and laser marking can be combined
-
Low MOQ, free design support and fast sampling for OEM projects
Artwork, quantity, finish, packing, and destination help us review the right supply route.
Product overview and types
Chemical Etched Metal Signage Nameplates for Industrial Equipment
Chemical etched metal signage nameplates are chosen when printed graphics alone may wear too quickly or look too flat. The etched recess keeps critical information visible, while optional paint fill, brushed grain and clear protective treatment improve contrast, readability and finished appearance.
Recessed Etched Lettering, Logo Graphics
Recessed etched lettering, logo graphics and technical fields
Supports Black Fill, Color Fill,
Supports black fill, color fill, screen printing and brushed contrast
Durable Choice
Durable choice for industrial signs and equipment data plates
Custom Size, Hole Layout, Corner
Custom size, hole layout, corner radius and mounting method by drawing
Product detail table
Final specifications and commercial terms are confirmed against the approved artwork, intended use, quantity, packing, and destination.
| Product and construction | |
|---|---|
| Products name | Chemical Etched metal Signage Nameplates for Industrial Equipment |
| Material | 304/316 stainless steel, aluminum or brass can be discussed for special projects |
| Features | Recessed etched lettering, logo graphics and technical fields; Supports black fill, color fill, screen printing and brushed contrast; Durable choice for industrial signs and equipment data plates; Custom size, hole layout, corner radius and mounting method by drawing |
| Thickness | 0.2-2.0 mm; common choices: 0.3 / 0.5/ 0.8 / 1.0 mm. |
| Dimensions & outline | Custom to dimensioned drawing; hole diameter, centers and corner radius specified. |
| Marking process | Chemical etching; recessed graphics with optional paint / enamel infill. |
| Etch depth | 0.1mm-0.3mm |
| Mounting | Screw / rivet holes or adhesive backing. |
| Adhesive option | 3M 467MP / 468MP or a project-selected foam tape |
| Artwork and finish | |
| Surface finish | Brushed or polished stainless/aluminum or brushed brass. |
| Filled color | Black or custom color |
| Artwork | AI / EPS / PDF vector artwork; dimensioned DXF / CAD drawing for the outline. |
| Order planning | |
| MOQ | 100 pieces per design; smaller trial quantities discuss separately |
| Production time | 10–15 working days against sample confirmed and deposit payment |
| Shipping | Express, air or sea freight; transit time quoted for the destination |
| Payment terms | 30% deposit, balanced against production finished before delivery. |
| Digital proof | Layout, dimensions, hole positions and data fields confirmed before production |
| Sample confirm | Digital proof first; Physical sample 5–7 working days against artwork confirmed, tooling and test requirements quoted separately. |
| Package | Protective interleaving or film, export carton or pallet packing. |
| Documentation | material declarations, restricted-substance documents and any test report that required. |
Customization capability
Full OEM Metal Equipment Nameplate Customization Options
For projects involving chemical etched metal signage nameplates for industrial equipment, we review the drawing, material selection, surface finish, marking method, hole layout, adhesive backing, variable data planning, inspection and export packing before production. Send us CAD files, vector artwork, existing samples, serial number lists, QR code data, rating information or a basic product idea that needs production advice. We use the approved details to prepare the production file and inspection checklist.
Artwork Review
Artwork and data setup: vector logos, rating data, model numbers, QR codes, barcodes, serial lists, warning icons and color references.
Specify Aluminum, Anodized Aluminum, 304
Specify aluminum, anodized aluminum, 304 stainless steel, 316 stainless steel, brass or plated metal according to environment, appearance and budget.
Printing and Color
Available processes include chemical etching, screen printing, UV printing, laser engraving, brushing, mirror polishing, embossing, debossing, punching, adhesive lamination and protective film.
Packing and Presentation
Choose from protective film, individual bags, ordered serial packing, backing liner, screw packs, barcode labels, export cartons and pallet packing.
Applications
Where Our Chemical Etched Metal Signage Nameplates For Industrial Equipment Are Used
Our chemical etched metal signage nameplates for industrial equipment are made for project buyers who need durable identification, clean branding and consistent production across multiple equipment models or product SKUs.
-

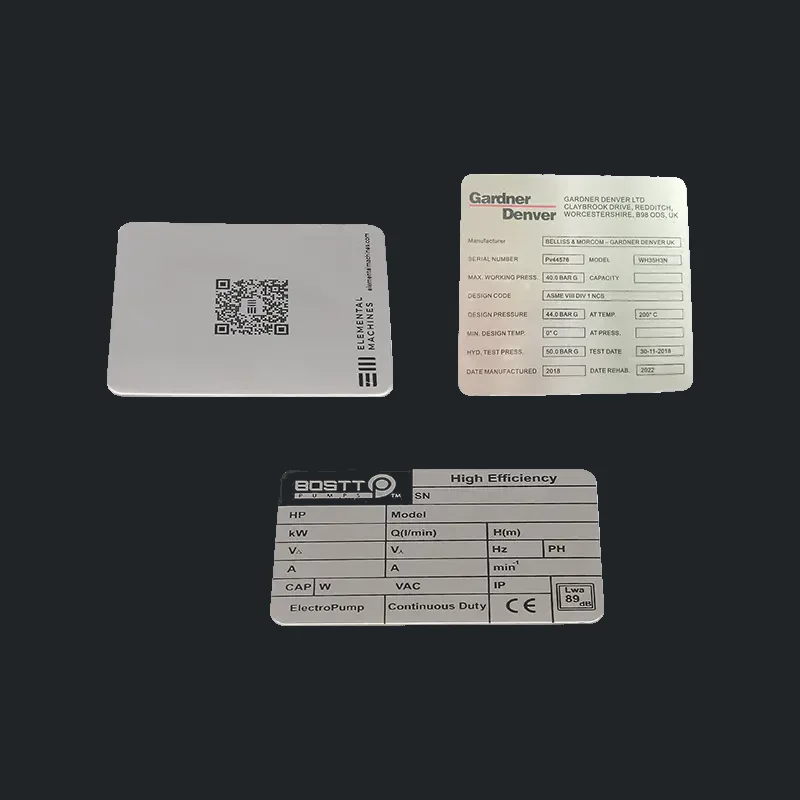

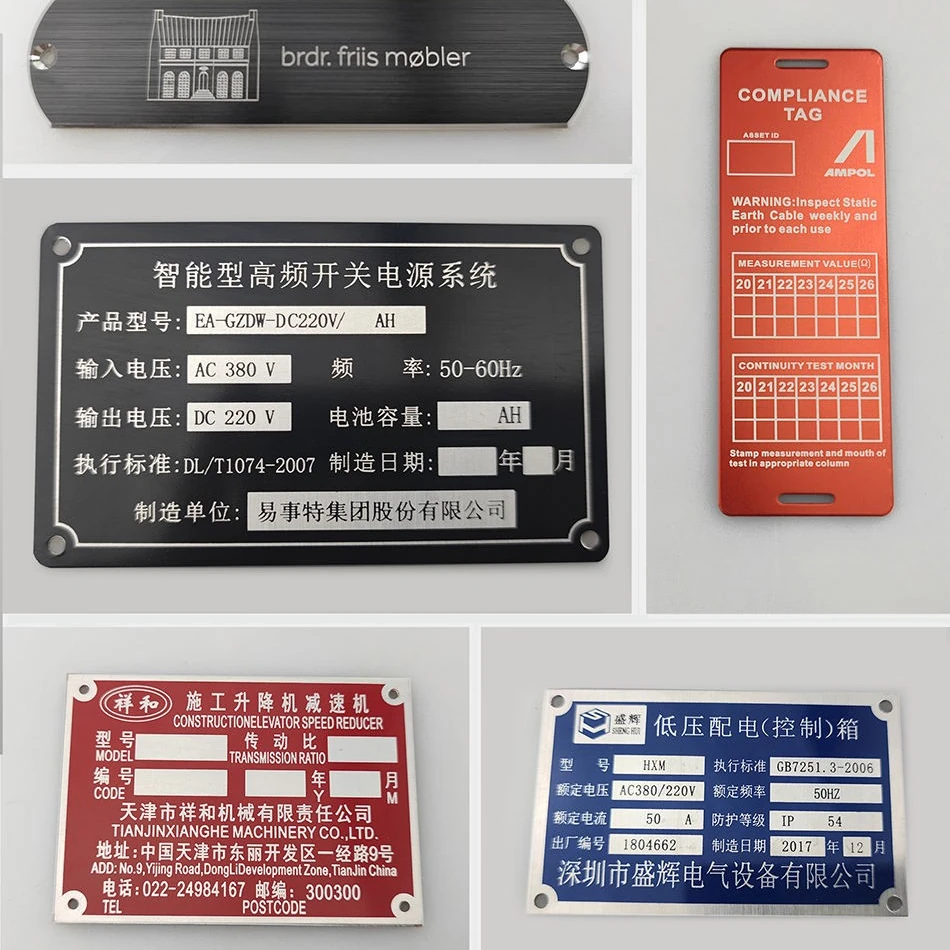

Industrial equipment signage and machine rating plates
-
Control panels, electrical enclosures and safety labels
-
Pumps, valves, mechanical systems and production machinery
-

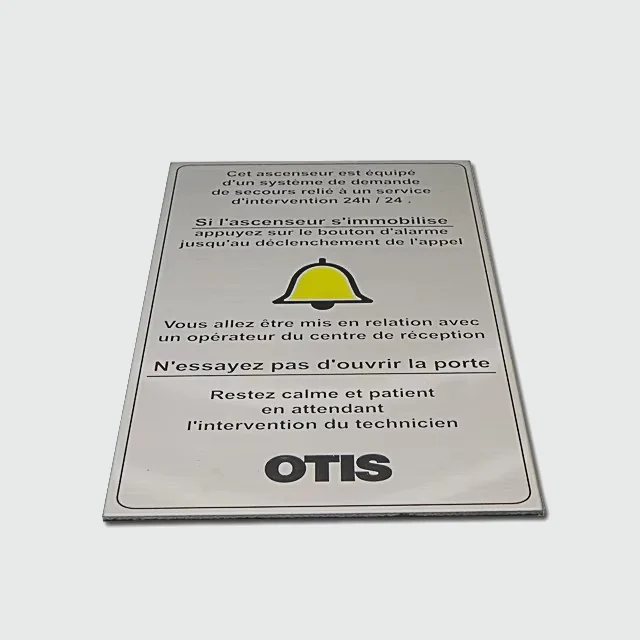

OEM warning plates, operating instruction plates and data tags
Ordering process
From Artwork to Shipment
Each stage keeps the approved artwork, construction, packing, and order requirements connected.
-
01
Share Artwork and Specifications
Send the artwork or reference image, dimensions, quantity, preferred material, finish, packing request, and destination.
-
02
Clarify Details and Quote
We review the request, identify open decisions, discuss suitable material and process routes, and prepare a project-based quotation.
-
03
Review Proof or Sample
Confirm the digital proof first. If physical verification is appropriate, the available sample route is agreed before the order proceeds.
-
04
Confirm Order
Approve the final artwork, construction, quantity, packing, commercial terms, and project schedule.
-
05
Coordinate Production and Inspection
Keep the approved artwork and construction details connected through production coordination and visible-detail inspection.
-
06
Pack and Arrange Shipment
Confirm packing details, shipment marks, delivery documents, and the agreed transport arrangement before dispatch.
Purchasing questions
Frequently Asked Questions
Can etched text still be identified if the fill wears?
The recess remains in the metal, but readability depends on depth, character size, lighting and wear. Review the actual construction and operating conditions rather than promising that every etched plate remains readable indefinitely.
Do different metals use the same etching specification?
No. Specify the metal, thickness, desired depth and graphic detail together. The selected etching process and finish must suit that substrate; an aluminum option does not establish a stainless steel parameter.
Which adhesive should I choose?
Choose the exact tape for the mounting surface, plate rigidity, temperature and cleaning exposure. Smooth bare metal and textured powder coating may need different constructions. Review a bonded sample rather than choosing by the 3M brand alone.
Which information is needed before production?
Approve the drawing, artwork revision, material, finish, fixing, quantity and inspection requirements. For changing information, also approve the data file and packing sequence. Any required documents or tests should be agreed with the order.
Project enquiry
Send an Inquiry
Share the artwork, dimensions, quantity, finish, packing needs, and destination available to you. We will use these details to review the appropriate product route.
